SPLIT, DUCTED, VRF & ROOFTOP PACKAGED AIR CONDITIONING IN MELBOURNE

Commercial Air Conditioning Installation: Split, Ducted & VRF

From a single wall-mounted unit in one room to a VRF system running an entire building, we design, supply and install the right system for the space, not the one that's easiest to fit.

  • 30 Minute Call Back Guaranteed
  • 11,200+ Jobs Completed
  • 50+ Yrs Of Combined Experience
  • Up To 7 Years Warranty*T&Cs apply
4.6★ from 86 Google Reviews

Speak with Melbourne's leading AC specialists,

Fully installed multi-split, up to 4 rooms

From

$6,970*

* Conditions apply — ask us for details.

Talk to a Specialist

Tell us about the space and what you're trying to achieve. One of our specialists will talk you through whether a split system or VRF is the right fit, no obligation.

Mitsubishi Electric Diamond Dealer

What a Diamond Dealer actually means

What it is

  • Factory training

    Our technicians are trained by Mitsubishi Electric to design, install and maintain their split and ducted systems.

  • The top tier

    Diamond Dealer is the highest level of accreditation in Mitsubishi Electric's dealer network.

  • Genuine equipment

    We install genuine Mitsubishi Electric equipment to the manufacturer's own standards.

What it means for you

  • Factory-backed warranty support on the installation, not just the box.
  • Access to extended parts and compressor warranty cover that a general contractor often cannot offer.
  • Equipment sized and designed for the actual space, which is where running costs are won or lost.

We Work With All The Top Brands

Daikin
Panasonic
Hitachi
Mitsubishi Electric
Smart Temp
Fantech
Temperzone

Victorian Energy Upgrades

Save On Your Upgrade With VEU Rebates

The VEU program helps eligible Victorian households and businesses replace old heating with efficient reverse-cycle air conditioning, lowering the upfront cost of your installation.

Multi-Split Systems

One outdoor unit running up to four indoor heads, so you condition the rooms you actually use instead of the whole house.

Wall-mounted split system blending into a bright modern kitchen and dining space
  • Up to 4 rooms
  • One outdoor unit
  • Energy efficient
  • Quiet performance
Mitsubishi Electric multi-split outdoor unitMitsubishi Electric wall-mounted indoor head

Multi-split system · Up to 4 rooms

From $6,970*

* Conditions apply — ask us for details.

At a Glance

Split, Ducted, VRF or Rooftop Packaged?

A split system suits individual rooms, ducted serves a home or tenancy from out of sight, VRF manages many independent zones, and a rooftop packaged unit serves larger open commercial spaces.

Split system

Best for
One room through to a few rooms
Indoor units
One per outdoor unit, or several on a multi-split
What you see in the room
A unit on the wall, floor or ceiling
Capacity range
2.0 – 9.0 kW
Zone control
Each unit controlled on its own
Typical site
Homes, apartments, small offices, single rooms
Outdoor units
One outdoor unit per system
Where it struggles
Gets expensive and cluttered past a few rooms

Ducted

Best for
A whole home or tenancy from one hidden unit
Indoor units
One unit feeding ducted outlets in every room
What you see in the room
Only the outlets. The unit is hidden in the ceiling
Capacity range
2.5 – 24.5 kW
Zone control
Zoned by area from one controller
Typical site
Apartments, houses, tenancies, open-plan offices
Outdoor units
One outdoor unit per ducted system
Where it struggles
Needs ceiling space, and it's disruptive to retrofit

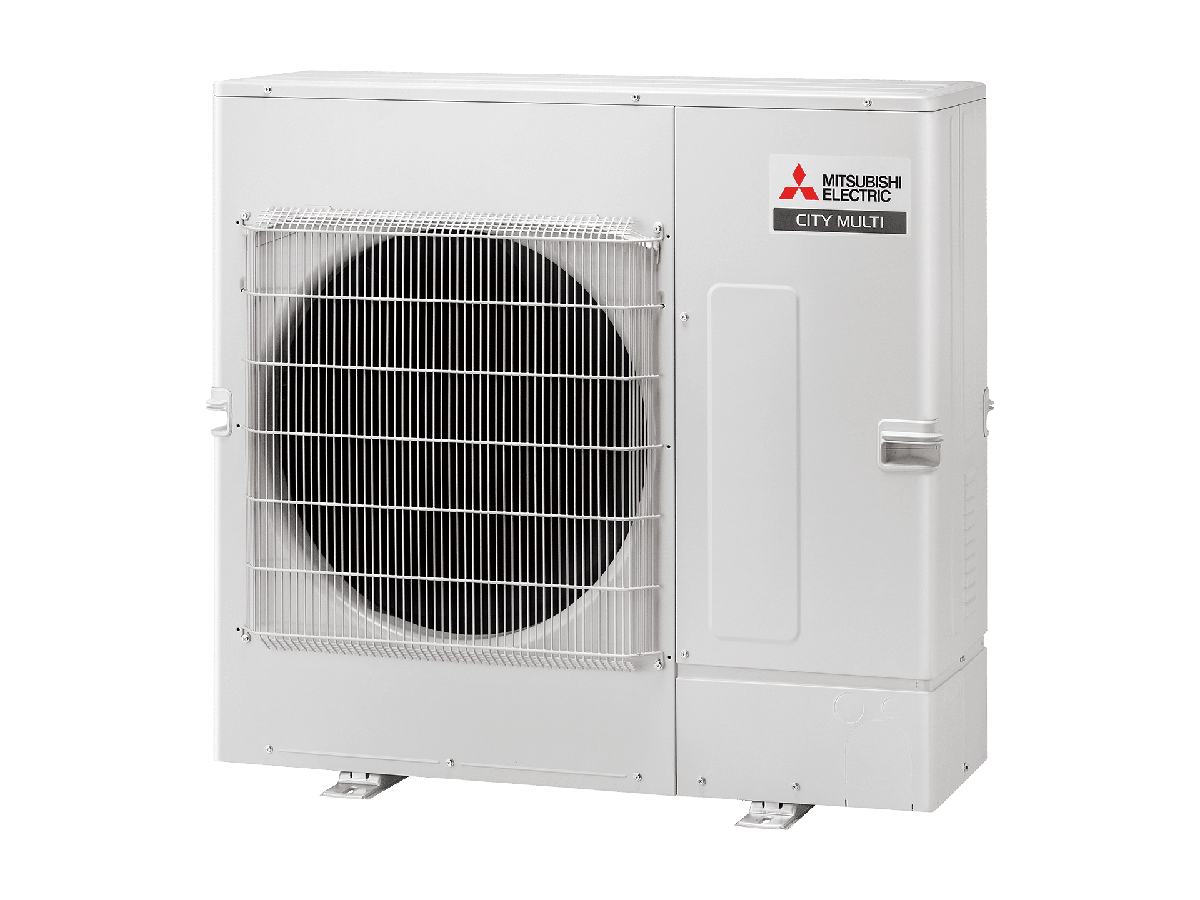

VRF

Best for
A whole building with many zones
Indoor units
Up to 8 indoor units on one outdoor unit
What you see in the room
An indoor unit in each zone
Capacity range
9.0 – 33.5 kW
Zone control
Independent temperature control in every zone
Typical site
Multi-storey homes, offices, apartment blocks, light commercial
Outdoor units
One outdoor unit for the whole building
Where it struggles
Overkill and over-budget for one or two rooms

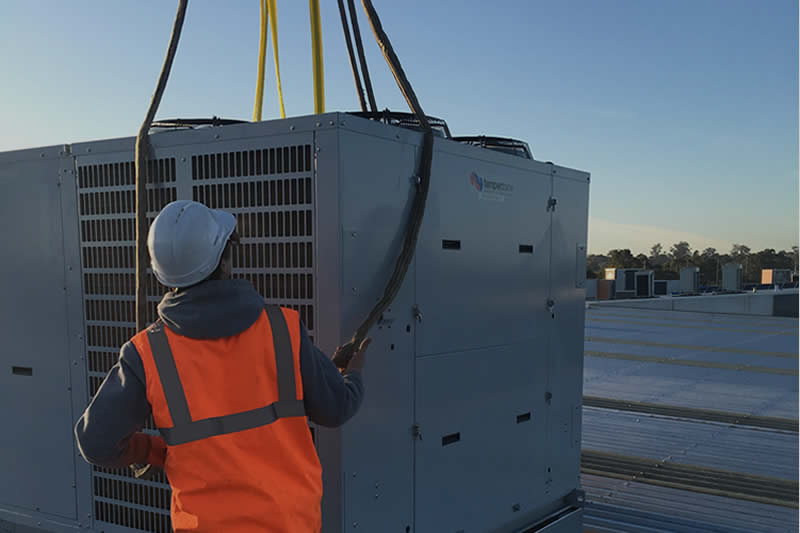

Rooftop packaged

Best for
Large open commercial and industrial spaces
Indoor units
None. Air is ducted in from the rooftop unit
What you see in the room
Supply and return air grilles
Capacity range
Typically 15 – 200 kW and above
Zone control
Usually one zone, or zoned by ductwork
Typical site
Warehouses, supermarkets, schools, pubs and clubs
Outdoor units
One packaged cabinet on the roof
Where it struggles
Needs roof structural capacity, access and duct routes

Find Your Fit

Let Us Help You Choose the Right System

Pick the type you're considering and we'll show you what it suits, the units we install, and the questions we get asked most.

Split Systems

Split System Air Conditioning

A split system pairs one outdoor unit with an indoor head to heat and cool a single room or open-plan area. It's the most common choice in Melbourne homes because it's efficient, quiet, quick to install and reverse cycle. One unit covers both winter and summer. Where you need more than one room, a multi-split runs several indoor heads from the one outdoor unit.

Wall-mounted, floor, cassette and multi-split units for a single room or a few rooms. All reverse cycle, all Mitsubishi Electric.

Mitsubishi ElectricMitsubishi Electric AP Series wall-mounted air conditioner

Wall-mounted

AP Series – Wi-Fi Built-In

The core wall-mounted range, in seven capacities from a small bedroom through to a large open-plan living area. Wi-Fi is built in, so you can start it before you get home.

Cooling
2.5 – 7.8 kW
Heating
3.2 – 9.0 kW
Wi-Fi
Wi-Fi built in
Control
Wireless remote
Models
MSZ-AP25–80
Find Out More
Mitsubishi ElectricMitsubishi Electric AP20 wall-mounted air conditioner

Wall-mounted

AP20

The smallest unit in the AP range, for a single bedroom, study or small office where 2.0 kW is plenty.

Cooling
2.0 kW
Heating
2.5 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wireless remote
Models
AP20
Find Out More
Mitsubishi ElectricMitsubishi Electric MSZ-AS90VGD wall-mounted air conditioner

Wall-mounted

MSZ-AS90VGD

The largest wall-mounted unit we install, for large open-plan living areas where one head has to do the work of a small ducted system.

Cooling
9.0 kW
Heating
10.3 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wireless remote
Models
MSZ-AS90VGD
Find Out More
Mitsubishi ElectricMitsubishi Electric MSZ-LN Series Onyx Black air conditioner

Designer wall-mounted

MSZ-LN Series – Onyx Black

The designer range in a brushed Onyx Black finish, for living rooms and bedrooms where the unit shouldn't be the first thing you notice.

Cooling
2.5 – 6.1 kW
Heating
3.2 – 6.8 kW
Wi-Fi
Wi-Fi built in
Control
Wireless remote
Models
MSZ-LN Onyx Black
Find Out More
Mitsubishi ElectricMitsubishi Electric MSZ-LN Series Ruby Red air conditioner

Designer wall-mounted

MSZ-LN Series – Ruby Red

The same designer body in Ruby Red, a deliberate feature rather than something to hide, with the same performance as the rest of the LN range.

Cooling
2.5 – 6.1 kW
Heating
3.2 – 6.8 kW
Wi-Fi
Wi-Fi built in
Control
Wireless remote
Models
MSZ-LN Ruby Red
Find Out More
Mitsubishi ElectricMitsubishi Electric MFZ-KW25VGKKIT floor console air conditioner

Floor console

MFZ-KW25VGKKIT

A floor console that sits low like a heater, for rooms with no usable high wall. Under windows, in extensions, and in homes moving off gas.

Cooling
2.5 kW
Heating
3.4 kW
Wi-Fi
Wi-Fi built in
Control
Wireless remote
Models
MFZKW25VGKKIT
Find Out More
Mitsubishi ElectricMitsubishi Electric MSZ-AP20VGDKIT wall-mounted air conditioner

Wall-mounted

MSZ-AP20VGDKIT

The 2.0 kW AP wall unit supplied as a complete indoor and outdoor kit, Wi-Fi ready with the optional adaptor.

Cooling
2.0 kW
Heating
2.5 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wireless remote
Models
MSZAP20VGDKIT
Find Out More
Mitsubishi ElectricMitsubishi Electric MSZ-EF25VGKDWKIT designer wall-mounted air conditioner

Designer wall-mounted

MSZ-EF25VGKDWKIT

A 2.5 kW designer unit with a flat, glossy face, for bedrooms and studies where wall space is tight and looks matter.

Cooling
2.5 kW
Heating
3.2 kW
Wi-Fi
Wi-Fi built in
Control
Wireless remote with Wi-Fi
Models
MSZ-EF25VGKDWKIT
Find Out More
Mitsubishi ElectricMitsubishi Electric SLZ-M25VAKIT compact ceiling cassette air conditioner

Compact ceiling cassette

SLZ-M25VAKIT

A compact cassette recessed into the ceiling and blowing in four directions. For open-plan areas, retail and offices where a wall unit would look out of place.

Cooling
2.5 kW
Heating
3.0 kW
Wi-Fi
No Wi-Fi
Control
Wired remote
Models
SLZM25VAKIT
Find Out More
Mitsubishi ElectricMitsubishi Electric MXZ-2F52VF-A1 multi-split outdoor air conditioner

Multi-split outdoor unit

MXZ-2F52VF-A1

A two-port outdoor unit running two indoor heads, so you can do two rooms without a second box on the wall outside.

Cooling
5.2 kW
Heating
6.1 kW
Wi-Fi
No Wi-Fi
Control
No remote control
Models
MXZ-2F52VF-A1
Find Out More

Why people choose it

  • Reverse cycle. Heating and cooling from one unit
  • Quiet operation, with quiet modes on current models
  • Wi-Fi control built into most current models
  • Efficient to run in a single room or zone
  • Quick to install, usually in a day
  • Easy to service and to add to later
EXPERIENCE MATTERS

Expert Answers
Before You Choose.

Practical guidance on sizing, zoning and installing the right system for your space.

Still Have Questions?

Speak with a technician.

Our team can talk through system options, sizing and install timing for your home or site.

Speak with a Specialist

Ducted & Bulkhead

Ducted Air Conditioning

Ducted systems hide the plant in the ceiling and push conditioned air through ductwork to outlets in each room, so all you see are the vents. They suit apartments and tenancies where a wall unit isn't practical, and larger open-plan spaces that are better served by one system than by several. Capacity runs from a slim 200mm bulkhead right up to 24.5 kW, enough to run a very large home or a commercial tenancy from one system.

Concealed units that distribute air through ductwork. From a slim bulkhead in an apartment ceiling through to light commercial ducted plant.

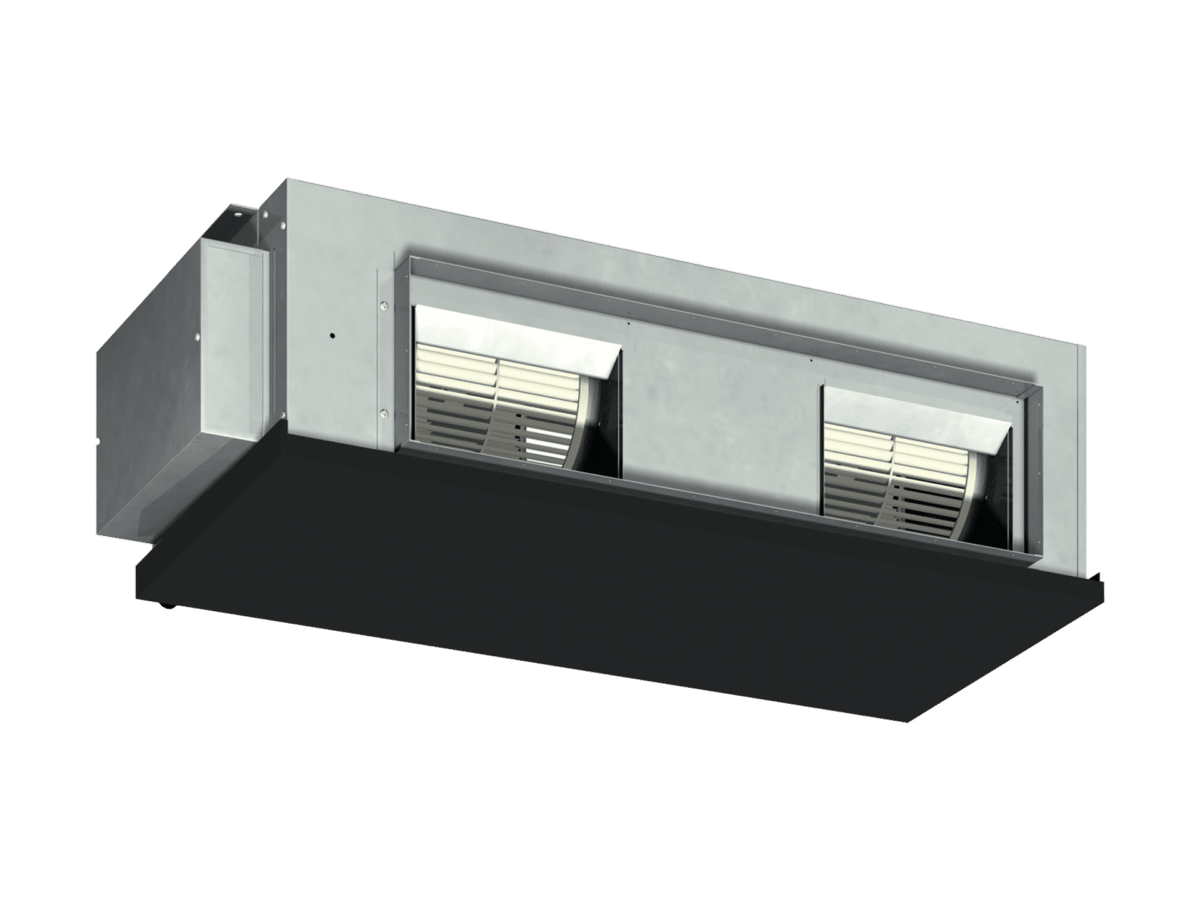

Mitsubishi ElectricMitsubishi Electric PEA-M100GAAVKIT2 ducted inverter air conditioner

Ducted inverter

PEA-M100GAAVKIT2

A 10.0 kW ducted inverter for larger tenancies and open-plan offices, in the G series configuration.

Cooling
10.0 kW
Heating
11.2 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEAM100GAAVKIT2
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-M100HAAVKIT2 ducted inverter air conditioner

Ducted inverter

PEA-M100HAAVKIT2

The same 10.0 kW capacity in the H series configuration, with a different fan and casing arrangement to suit the plant space.

Cooling
10.0 kW
Heating
11.2 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEAM100HAAVKIT2
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-MS100GAAVKIT ducted inverter air conditioner

Ducted inverter

PEA-MS100GAAVKIT

The G series at 10.0 kW cooling with 12.5 kW heating, for sites that need more heating capacity than cooling.

Cooling
10.0 kW
Heating
12.5 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEAMS100GAAVKIT
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-MS100HAAVKIT ducted inverter air conditioner

Ducted inverter

PEA-MS100HAAVKIT

The H series equivalent, at 10.0 kW cooling and 12.5 kW heating.

Cooling
10.0 kW
Heating
12.5 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEAMS100HAAVKIT
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-M125HAA ducted inverter air conditioner

Ducted inverter

PEA-M125HAA

A step up from the 10 kW units for larger homes and tenancies. Two-piece construction, so it can be lifted into a roof space in sections where access is tight.

Cooling
12.5 kW
Heating
14.0 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEA-M125HAA
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-M140HAA ducted inverter air conditioner

Ducted inverter

PEA-M140HAA

The largest of the H series units, for whole-home systems in bigger houses. Same two-piece construction, which is what makes these practical to retrofit into an existing roof.

Cooling
14.0 kW
Heating
16.0 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEA-M140HAA
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-M160HAA ducted inverter air conditioner

Ducted inverter

PEA-M160HAA

A 16 kW whole-home system that can run off either single-phase or three-phase power, so a larger house does not automatically need a power upgrade.

Cooling
16.0 kW
Heating
18.0 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEA-M160HAA
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-M180LAA large-capacity ducted air conditioner

Large-capacity ducted

PEA-M180LAA

One of the largest ducted units on the market that will still run on single-phase power, which often saves the cost of upgrading the supply. Three-phase is available as well.

Cooling
18.0 kW
Heating
20.0 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEA-M180LAA
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-M200LAA large-capacity ducted air conditioner

Large-capacity ducted

PEA-M200LAA

A 20 kW system on three-phase power, for large homes and light commercial tenancies that need more than the single-phase range can deliver.

Cooling
20.0 kW
Heating
22.4 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEA-M200LAA
Find Out More
Mitsubishi ElectricMitsubishi Electric PEA-M250LAA large-capacity ducted air conditioner

Large-capacity ducted

PEA-M250LAA

The largest ducted system in the range, on three-phase power, for very large homes and commercial spaces served by a single system.

Cooling
24.5 kW
Heating
28.0 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
PEA-M250LAA
Find Out More
Mitsubishi ElectricMitsubishi Electric SEZ-M25DAKIT slim bulkhead air conditioner

Slim bulkhead

SEZ-M25DAKIT

A 200mm-high bulkhead unit that fits ceiling spaces a conventional ducted system won't. Apartments, offices and smaller tenancies.

Cooling
2.5 kW
Heating
3.0 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
SEZM25DAKIT
Find Out More
Mitsubishi ElectricMitsubishi Electric SEZ-M25DALKIT slim bulkhead air conditioner

Slim bulkhead

SEZ-M25DALKIT

The same slim bulkhead supplied in the DAL kit configuration.

Cooling
2.5 kW
Heating
3.0 kW
Wi-Fi
Optional Wi-Fi adaptor
Control
Wired remote
Models
SEZM25DALKIT
Find Out More

Why people choose it

  • Plant hidden in the ceiling. Only the outlets are visible
  • One system instead of several wall units, up to 24.5 kW
  • Slim bulkhead options for tight ceiling spaces
  • Zoning, so you only condition the areas in use
  • Quiet in the occupied space
  • Suits apartments, tenancies and open-plan areas
EXPERIENCE MATTERS

Expert Answers
Before You Choose.

Practical guidance on sizing, zoning and installing the right system for your space.

Still Have Questions?

Speak with a technician.

Our team can talk through system options, sizing and install timing for your home or site.

Speak with a Specialist

VRF Systems

VRF Air Conditioning

VRF , variable refrigerant flow , runs many indoor units from a single outdoor unit, varying refrigerant flow to each zone independently. One room can heat while another cools, and the system only works as hard as the occupied zones demand. It's the standard approach for multi-storey homes, offices, apartment blocks and light commercial buildings where a wall of individual outdoor units isn't practical.

One outdoor unit running many indoor units, each zone controlled independently. The standard approach for multi-storey and light commercial buildings.

Mitsubishi ElectricMitsubishi Electric PUMY-SP Series compact VRF outdoor unit

Compact VRF outdoor unit

PUMY-SP Series

Runs up to eight indoor units from one outdoor unit, each with independent temperature control, and stands under a metre tall so it fits narrow balconies and tight plant areas. Compatible with up to 27 indoor unit models.

Cooling
9.0 – 15.5 kW
Heating
10.0 – 16.5 kW
Wi-Fi
Optional Wi-Fi control
Control
Centralised or individual zone control
Models
PUMY-SP Series
Find Out More
Mitsubishi ElectricMitsubishi Electric PUMY-P Series high-capacity VRF outdoor unit

High-capacity VRF outdoor unit

PUMY-P Series

The larger end of the range, for multi-storey homes, offices and medium-scale developments. Up to eight indoor units per outdoor unit, with a compact footprint for rooftop or ground-level installation.

Cooling
22.4 – 33.5 kW
Heating
25.0 – 37.5 kW
Wi-Fi
Optional Wi-Fi control
Control
Centralised system control
Models
PUMY-P200, P250, P300
Find Out More
Mitsubishi ElectricMitsubishi Electric PUMY-SP80VKMD2-A compact VRF outdoor air conditioner

Compact VRF outdoor unit

PUMY-SP80VKMD2-A

The 9.0 kW model at the entry point of the PUMY-SP range, for smaller multi-zone installations.

Cooling
9.0 kW
Heating
10.0 kW
Wi-Fi
No Wi-Fi
Control
No remote control
Models
PUMY-SP80VKMD2-A
Find Out More

Why people choose it

  • Independent temperature control in every zone
  • One outdoor unit instead of a wall of them
  • Efficient at part load, which is how buildings actually run
  • Quiet operation for noise-sensitive sites
  • Wide choice of indoor unit styles on the one system
  • Centralised and Wi-Fi control across the building
  • Zoning that can be extended as the building changes
EXPERIENCE MATTERS

Expert Answers
Before You Choose.

Practical guidance on sizing, zoning and installing the right system for your space.

Still Have Questions?

Speak with a technician.

Our team can talk through system options, sizing and install timing for your home or site.

Speak with a Specialist

Rooftop Packaged Units

Rooftop Packaged Air Conditioning

A rooftop packaged unit does the whole job from one cabinet on the roof, cooling, heating and air movement, with conditioned air ducted into the space below. It suits large open commercial and industrial buildings where there's no room for indoor plant, and where servicing shouldn't mean working inside a trading tenancy. Capacities run from around 15 kW for a small retail space up to 200 kW and beyond for a warehouse or production floor. Most current ranges are variable capacity, so the unit modulates rather than cycling, and an economy cycle can be specified to bring in outside air for free cooling when conditions allow.

We size and specify the unit around the building — the airflow, the roof structure, access for servicing, and how the space is actually used — then handle the structural, electrical and controls work that goes with it. Capacity, fresh air and heating options are all selected at design stage rather than picked off a shelf.

Grotec technician servicing a rooftop condensing unit on a Melbourne commercial building

Rooftop packaged

Medium-capacity packaged units

Suited to single-tenancy buildings and open floor areas where one unit can serve the whole space. The cabinet sits on a roof curb and connects to supply and return ductwork, so nothing intrudes on the tenancy below.

Cooling
Typically 15 – 60 kW
Heating
Reverse cycle available
Fresh air
Economy cycle and fresh air available
Control
Wall controller or BMS
Typical sites
Retail, hospitality, community halls, light industrial
Find Out More
Two Grotec technicians installing rooftop condensing units on a commercial building

Rooftop packaged

High-capacity packaged units

For large-volume buildings where one plant item is more practical than a bank of smaller systems. Most current ranges are variable capacity or multi-stage, so the unit modulates down to match the load instead of cycling on and off — which is where the running-cost difference shows up.

Cooling
Typically 60 – 200 kW and above
Heating
Reverse cycle available
Fresh air
Economy cycle and fresh air available
Control
BMS integration available
Typical sites
Warehouses, supermarkets, schools, production facilities
Find Out More

Why people choose it

  • All the plant in one weatherproof cabinet on the roof
  • No indoor plant room, and no ceiling space taken up
  • Reverse cycle heating and cooling from the one unit
  • Optional economy cycle draws in outside air when it's cooler than the setpoint
  • Servicing happens at roof level, away from the occupied space
  • Integrates with building management systems, commonly over Modbus or BACnet
EXPERIENCE MATTERS

Expert Answers
Before You Choose.

Practical guidance on sizing, zoning and installing the right system for your space.

Still Have Questions?

Speak with a technician.

Our team can talk through system options, sizing and install timing for your home or site.

Speak with a Specialist

Fully Compliant And Certified

  • Energy Safe Victoria
  • ARCtick Certified
  • Plumbing Industry Commission

Google Reviews

What Melbourne Says About Grotec

4.6

Excellent · Based on 86 Google reviews

MT
Mark Tatti
“Can not recommend Grotec highly enough. I had my out dated ducted system replaced and can not believe the difference it's made. Super impressed with the service from start to finish.”
IG
Irena Goltz
“He was punctual, courteous, competent, quick, neat, careful in his duties and genuinely pleasant in course of our interactions. He displayed the highest level of professionalism.”
JD
Jeffrey Domingo
“I've used Grotec for several times now and always found their service 5 star, from the Administration department their field technicians, also the communication skills is fantastic.”
MS
Mikhail Santosa
“Had really nice experience with Grotec. They came on time (early actually) and were very friendly. Daniel is very experienced and gave very sound advise. Definitely recommended.”
GI
Gary Israelsohn
“Great Service, tech was on time, great communication, and efficient. Answered all my questions. Left my house spotless. Highly recommend.”

Greater Melbourne

Split, Ducted & VRF Installers Near Me

Whether it's one wall-mounted unit or a VRF system across a whole building, our technicians install and service across greater Melbourne.

Areas we service include:

South-East MelbourneOur home region, worked daily from the Keysborough base, across the south-eastern growth corridor and established suburbs.
  • Keysborough
  • Dandenong
  • Springvale
  • Noble Park
  • Clayton
  • Oakleigh
  • Berwick
  • Narre Warren
  • Cranbourne
  • Pakenham
  • Rowville
  • Endeavour Hills
Bayside & PeninsulaCoastal and bayside properties, where salt air shortens outdoor unit life and changes maintenance intervals.
  • Brighton
  • Sandringham
  • Hampton
  • Mentone
  • Mordialloc
  • Frankston
  • Mount Eliza
  • Mornington
  • Rosebud
  • Dromana
  • Carrum
  • Chelsea
Eastern SuburbsResidential retrofits, medical suites, schools and commercial tenancies across Melbourne's east.
  • Box Hill
  • Camberwell
  • Hawthorn
  • Glen Waverley
  • Doncaster
  • Ringwood
  • Blackburn
  • Nunawading
  • Croydon
  • Lilydale
  • Vermont
  • Bayswater
Inner Melbourne & CBDMulti-storey commercial, strata apartments and tenancy fit-outs, scheduled around building access rules.
  • Melbourne CBD
  • Southbank
  • Docklands
  • Carlton
  • Fitzroy
  • Collingwood
  • Richmond
  • South Yarra
  • Prahran
  • St Kilda
  • Port Melbourne
  • South Melbourne
Northern SuburbsCommercial, industrial and residential work across Melbourne's north, including depots and warehousing.
  • Preston
  • Reservoir
  • Coburg
  • Brunswick
  • Thomastown
  • Epping
  • Bundoora
  • Craigieburn
  • Broadmeadows
  • Heidelberg
  • Greensborough
  • Mill Park
Western SuburbsIndustrial and logistics facilities, schools and residential across the western corridor.
  • Footscray
  • Sunshine
  • Altona
  • Laverton
  • Werribee
  • Point Cook
  • Tarneit
  • Caroline Springs
  • Melton
  • Williamstown
  • Yarraville
  • Deer Park

Can't see your location? Get in touch and we'll let you know the nearest Grotec team.

Talk to a Specialist

Not Sure Which System You Need?

1800 476 832
